Cryogenic Liquid Oxygen Storage Tank

1.Compact structure, cover a small area.

2.Complete closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.

3.With the pressure adjusting device, pressure is stable, easy to operate.

4.Tank provided with a tank filled joints, can shipping liquid to the vaporizers, tanks.

5.Insulation material vacuum layer, to make sure the long use life.

Contact Now E-Mail Telephone

Product Details

Product description:

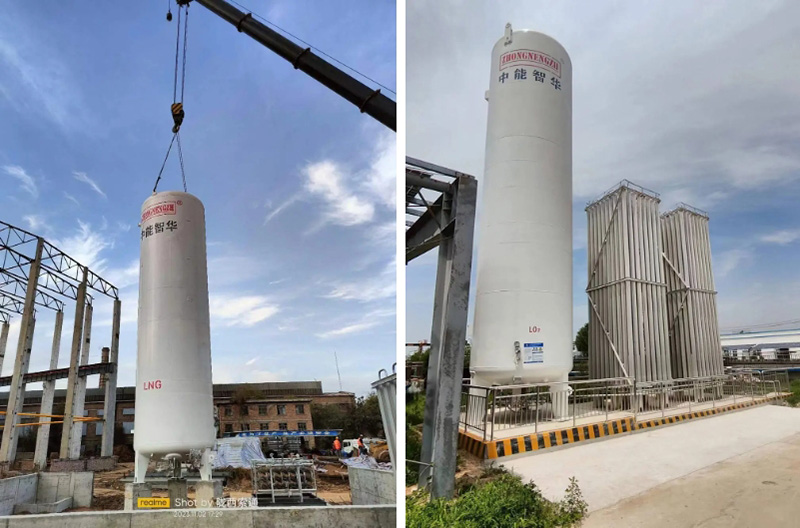

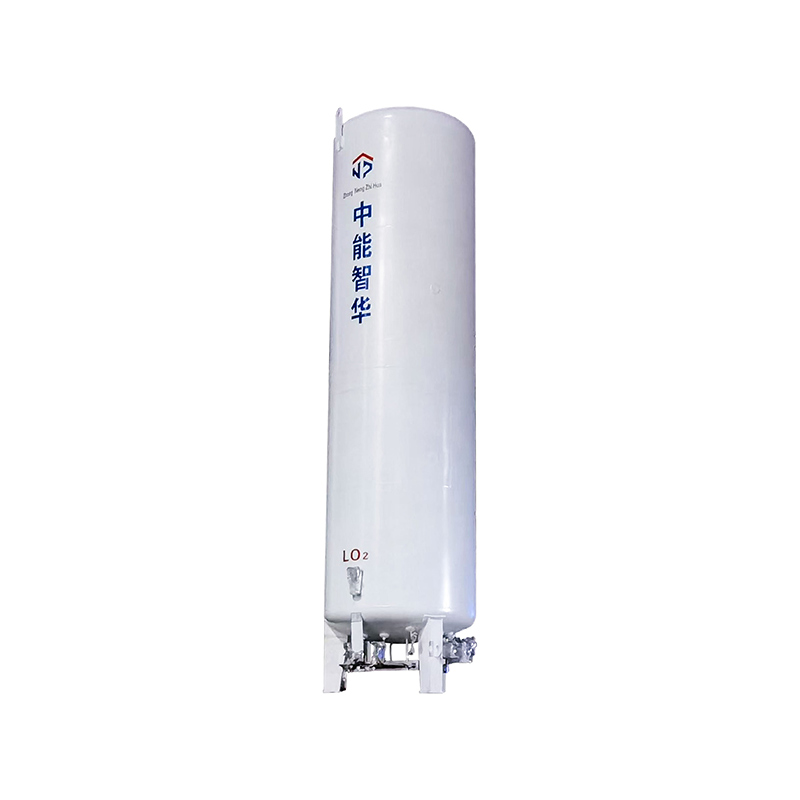

Cryogenic Liquid Oxygen Storage Tank is a vertical or horizontal double-layer vacuum adiabatic storage tank for storing liquid oxygen. The inner material is austenitic stainless steel, outer material is selected such as Q235B, Q245R, 345R or as requirements. The interlayer between inner and outer container is filled with thermal insulation materials such as pearlite sand , aluminum foil, or thermal insulation cotton , then vacuum.

The Bottom Of The Cryogenic Tank Is Provided With a Complete Set Of Valves, Meters And Safety Devices For Operation.

Cryogenic Liquid Oxygen Storage Tank

Structure:

Liquid oxygen must be stored in cryogenic storage tanks，cryogenic storage tanks are usually composed of an inner tank and an outer tank, and the middle is filled with insulation material.

Adiabatic mode:

Vacuum Powder Adiabatic, high vacuum winding Adiabatic

Applicable Industries:

Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works , Energy & Mining, medical, chemical industry

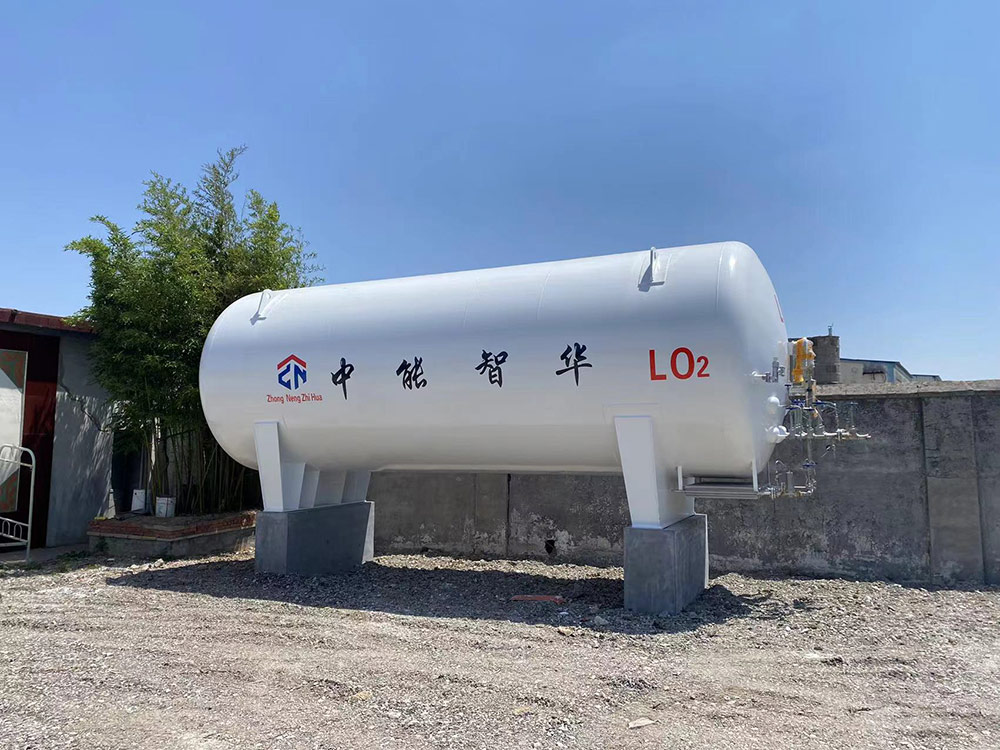

Horizontal liquid oxygen storage tanks set on flatbed trailers & vaporizers are laying down on steel I beams created a long, narrow equipment arrangement that is now completely piped up & functionally excellently supplying Medical Oxygen to the temporary hospital.

Cryogenic Liquid Oxygen Storage Tank
