10m3 Lng Cryogenic Storage Tank

1.Compact structure, cover a small area.

2.Complete closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.

3.With the pressure adjusting device, pressure is stable, easy to operate.

4.Tank provided with a tank filled joints, can shipping liquid to the vaporizers, tanks.

5.Insulation material vacuum layer, to make sure the long use life.

Contact Now E-Mail Telephone

Product Details

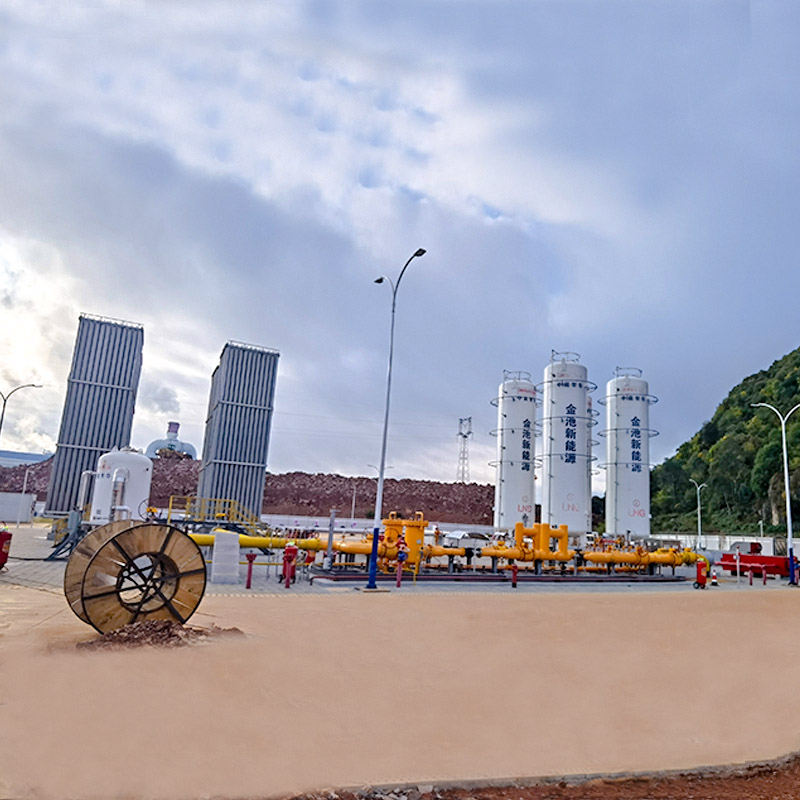

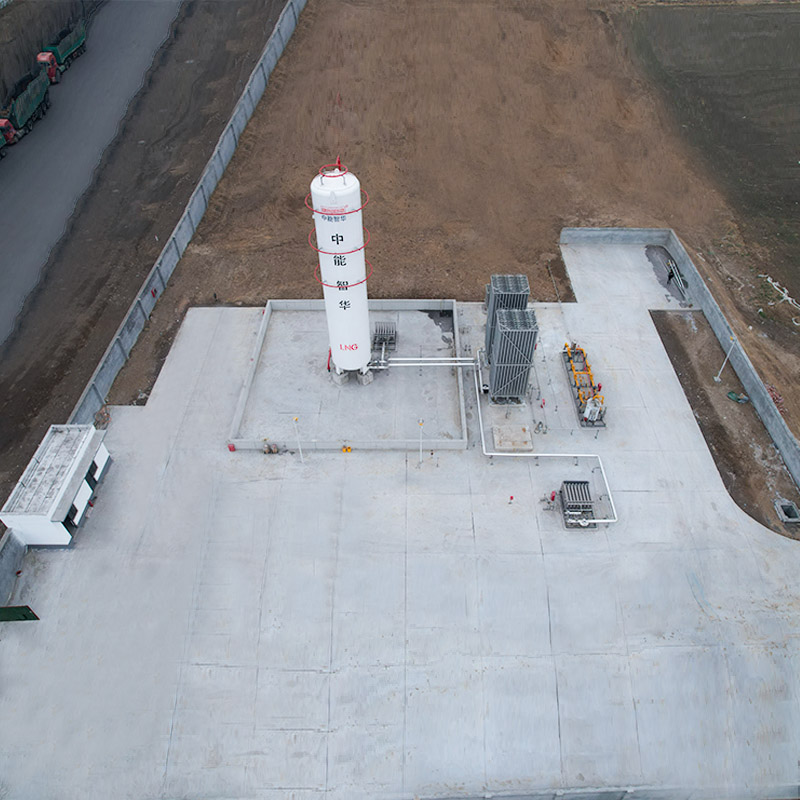

A LNG cryogenic tank is a storage tank designed to store liquefied natural gas (LNG) at very low temperatures, typically around -162 degrees Celsius (-260 degrees Fahrenheit). These tanks are heavily insulated to keep the LNG in a liquid state and prevent it from vaporizing. LNG cryogenic tanks are commonly used for storing and transporting LNG for various industrial and commercial applications, such as in the energy, transportation, and manufacturing sectors.

Produce Process

Main Parameter:

Item	Mode	Dimension	Weight
1	CFL-5/0.8	Φ2312*3561	3680
2	CFL-10/0.8	Φ2312*5781	6074
3	CFL-15/0.8	Φ2316*7735	7933
4	CFL-20/0.8	Φ2716*7133	8400
5	CFL-30/0.8	Φ2716*9814	12019
6	CFL-50/0.8	Φ3216*10721	19554
7	CFL-60/0.8	Φ3020*14162	26169
8	CFL-100/0.8	Φ3620*15390	38340
9	CFL-150/0.8	Φ3820*19612	57985
10	CFL-30/1.2	Φ2716*9814	13219
11	CFL-60/1.2	Φ3020*14162	28350
12	CFL-100/1.2	Φ3620*15390	44340
