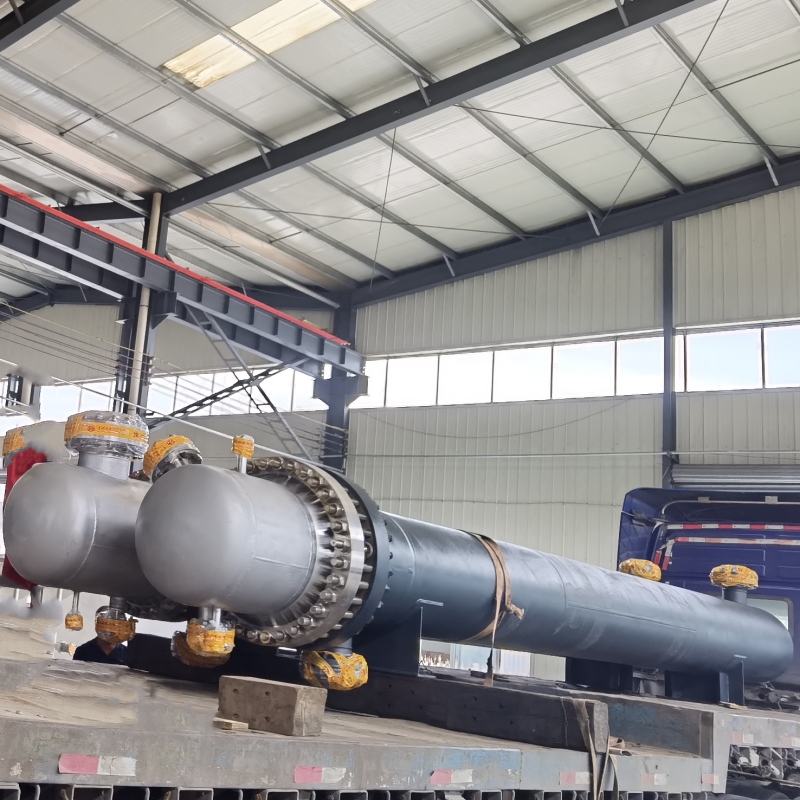

High Quality Industrial Shell and Tube Heat Exchanger

Shell and tube heat exchanger is the most widely used heat exchanger in chemical industry and alcohol production. It is mainly composed of shell, tube sheet, heat exchange tube, head, baffle, etc.

Shell and tube heat exchanger combined with Flange, connecting flange of cooling water, shell, tubular, shell cover, connecting flange of supplies inlet and outlet. There are many types of the heat exchanger tube material such as carbon steel tube, stainless steel tube, titanium tube, copper tube,ripple titanium tube etc.

We produce varies of shell and tube heat exchanger. The heat exchanging area ranges from 0.5㎡ to 500㎡.

Advantage

1. Energy saving, the heat transfer coefficient of the heat exchanger is 6000-8000W/m2.0C.

2. Made of stainless steel, long service life, up to more than 20 years.

3. Change the laminar flow to turbulent flow, improve the heat exchange efficiency and reduce the thermal resistance.

4. Fast heat exchange, high temperature resistance (400°C), high pressure resistance (2.5Mpa).

5. Compact structure, small footprint, light weight, easy installation, saving civil engineering investment.

6. Flexible design, complete specifications, practical and targeted, saving money.

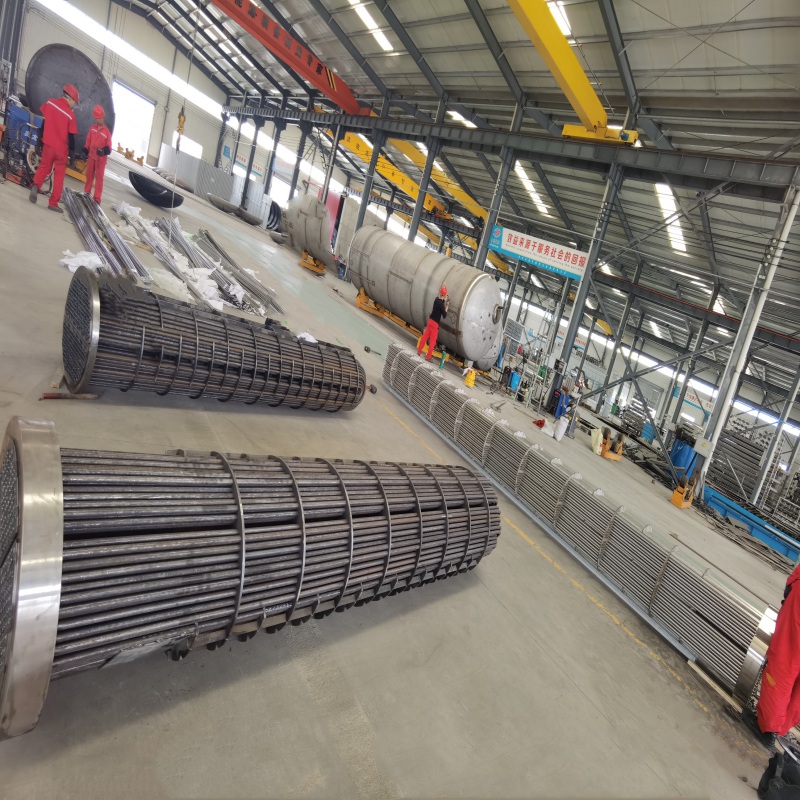

Workshop

Certificate
