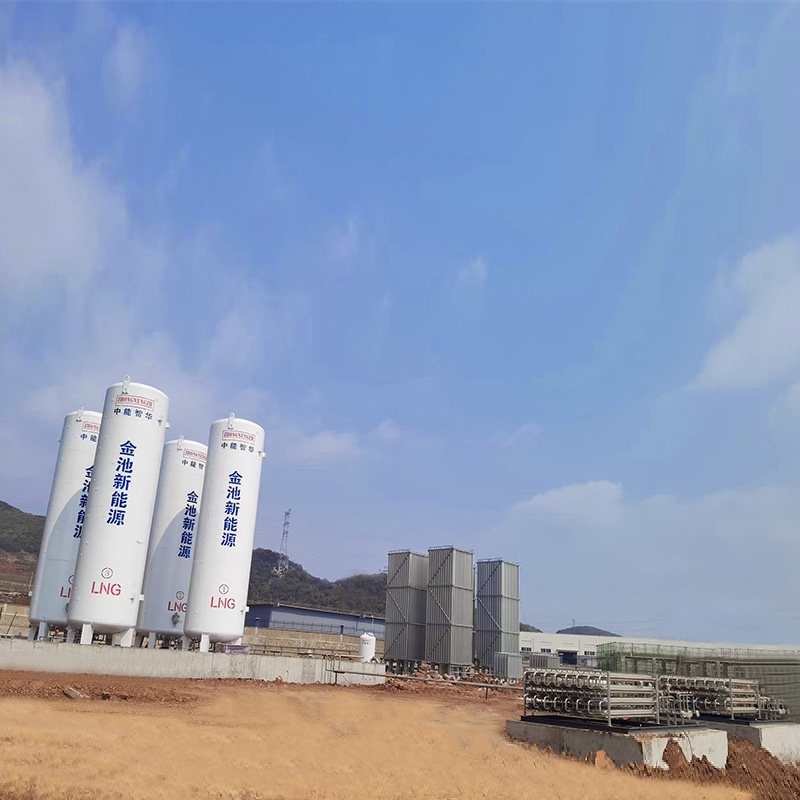

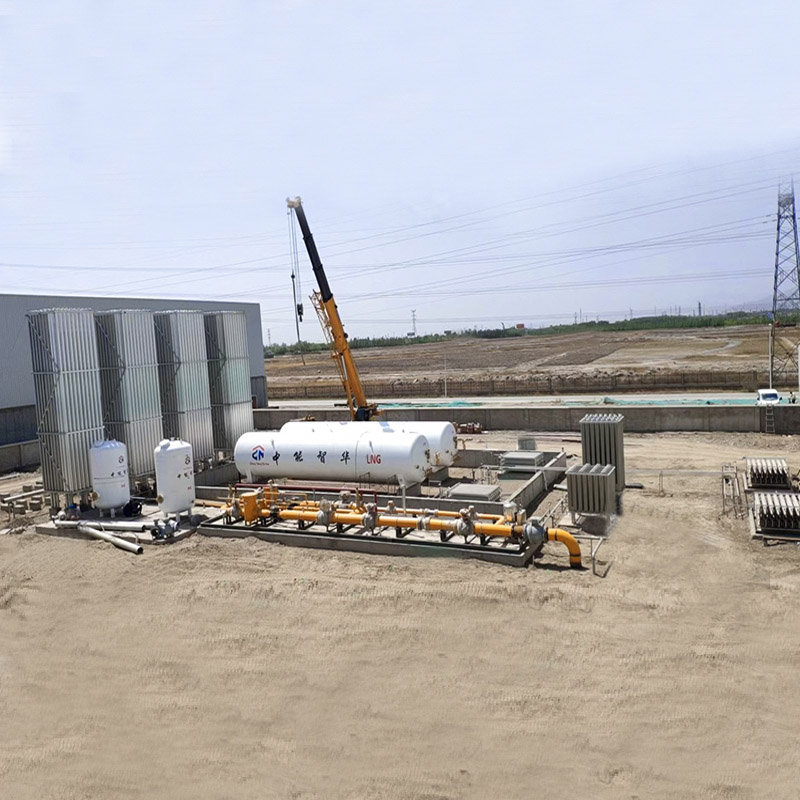

20T LNG Cryogenic Storage Tank

1.Compact structure, cover a small area.

2.Complete closed system, The liquid or gas can be supplied externally without any additional energy, ensure the liquid or gas purity when discharge.

3.With the pressure adjusting device, pressure is stable, easy to operate.

4.Tank provided with a tank filled joints, can shipping liquid to the vaporizers, tanks.

5.Insulation material vacuum layer, to make sure the long use life.

Contact Now E-Mail Telephone

Product Details

A 20-ton LNG cryogenic storage tank would be a large tank designed to hold and store 20 metric tons (or approximately 20,000 kilograms) of liquefied natural gas (LNG). These tanks are specially designed to keep the LNG at very low temperatures so that it remains in its liquid state. They are typically used in industrial settings, such as LNG refueling stations, LNG power plants, and LNG distribution terminals. The design and construction of such tanks must adhere to stringent safety standards to ensure the integrity of the storage and prevent any leaks or accidents.

Structure：LNG must be stored in cryogenic storage tanks，cryogenic storage tanks are usually composed of an inner tank and an outer tank, and the interlayer is filled with insulation material.

Applicable Industries

Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Construction works, Energy & Mining, medical, chemical industry

Produce Process

Main Parameter

Item	Model	Dimension	Weight(Kg)
1	CFL-5/0.8	Φ2312*3561	3680
2	CFL-10/0.8	Φ2312*5781	6074
3	CFL-15/0.8	Φ2316*7735	7933
4	CFL-20/0.8	Φ2716*7133	8400
5	CFL-30/0.8	Φ2716*9814	12019
6	CFL-50/0.8	Φ3216*10721	19554
7	CFL-60/0.8	Φ3020*14162	26169
8	CFL-100/0.8	Φ3620*15390	38340
9	CFL-150/0.8	Φ3820*19612	57985
10	CFL-30/1.2	Φ2716*9814	13219
11	CFL-60/1.2	Φ3020*14162	28350
12	CFL-100/1.2	Φ3620*15390	44340
13	CFW-5/0.8	Φ2312*3790	3746
14	CFW-10/0.8	Φ2316*5650	6440
15	CFW-15/0.8	Φ2416*6336	8930
16	CFW-20/0.8	Φ2616*7842	9490
17	CFW-30/0.8	Φ2716*9826	12580
18	CFW-50/0.8	Φ3016*12383	20010
19	CFW-60/0.8	Φ2016*13831	22470
20	CFW-100/0.8	Φ3520*16375	38350
21	CFW-150/0.8	Φ3720*20793	52050
22	CFW-200/0.8	Φ3820*26080	67681
